Product Description

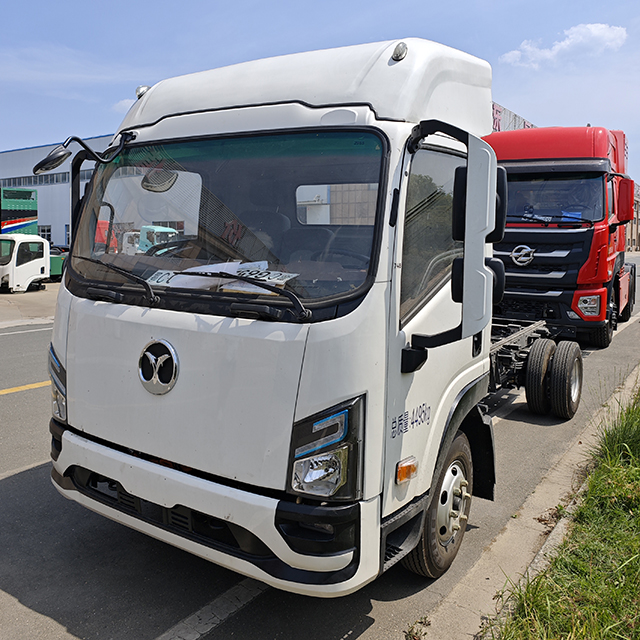

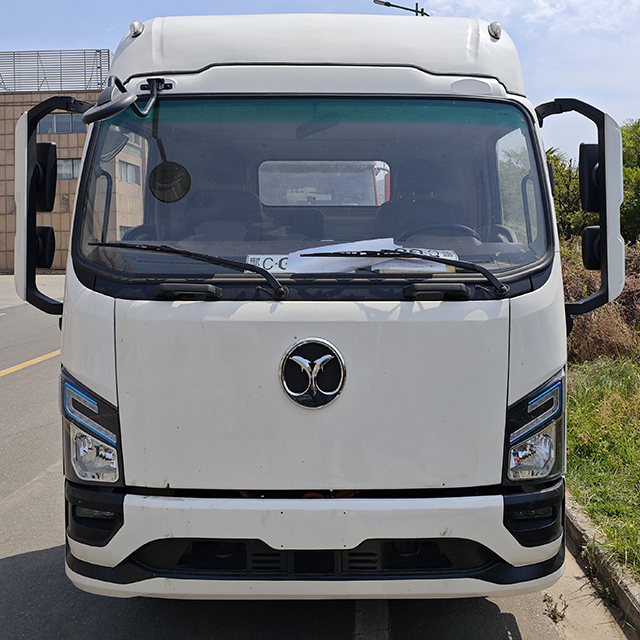

An electric truck is a type of truck powered by an on-board power source, driven by an electric motor, and in compliance with all the requirements of road traffic and safety regulations. It mainly relies on batteries to store electrical energy, which is then converted into mechanical energy by the motor to drive the vehicle. Compared with traditional fuel-powered trucks, it has no internal combustion engine and is entirely driven by an electric power system
Environmental Pioneer:Zero Emissions, Low Noise
Zero Tailpipe Emissions:
The electric light truck is entirely powered by electricity. It produces no tailpipe emissions during operation, effectively reducing environment pollution. It is particularly suitable for urban centers and scenarios with high environmental requirements.
Low-Noise Operation:
The noise level during operation is extremely low, consisting only of the slight noise from the electric motor and teh friction between teh tires and the ground. It does not cause noise interference to surrounding residents and commercial activities, providing a quieter living environment for city dwellers.
High-Efficiency Power: Strong Performance, Long-Lasting Range
Strong Power: It is equipped with the TZ210XS042DN02 permanent-magnet synchronous motor produced by Prowan. The motor has a rated power of 70Kw and a peak power of 140kW. The rated torque is 180N·m, and the peak torque is 420N·m. It can instantly output a large torque, making the vehicle's start-up and acceleration rapid and powerful.
Long-Lasting Range:It is fitted with a lithium-iron-phosphate battery from CATL.The total battery capacity is 120.27kWh, and the total voltage is 592.48V. This truck meeting the daily operational needs of urban logistics distribution
Energy Recovery: It is equipped with an energy recovery system that converts part of the kinetic energy into electrical energy into electrical energy and stores it during braking, further improving energy efficiency.
Raliable Chassis: Stable Carrying Capacity, Safe and Reliable

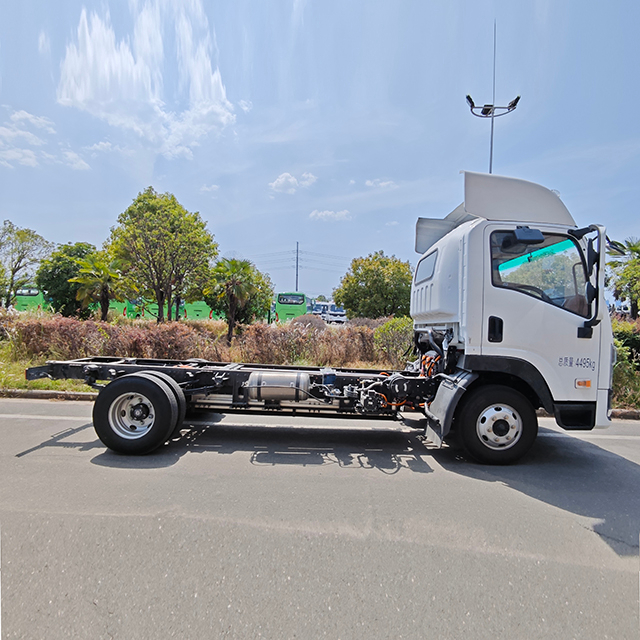

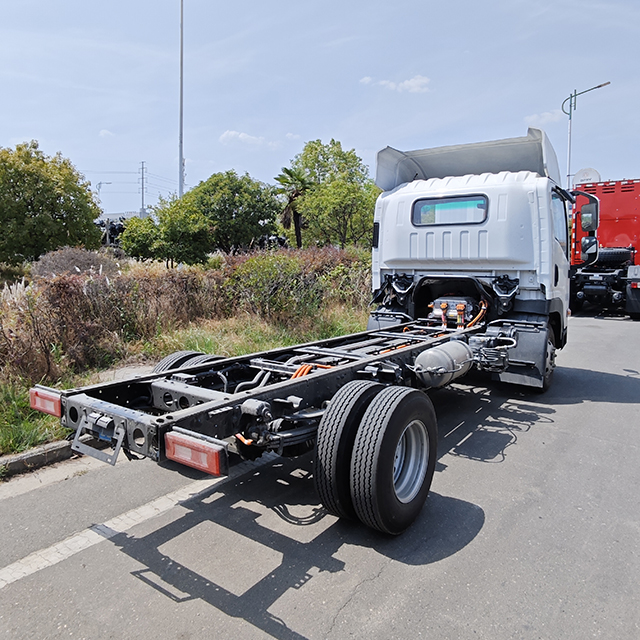

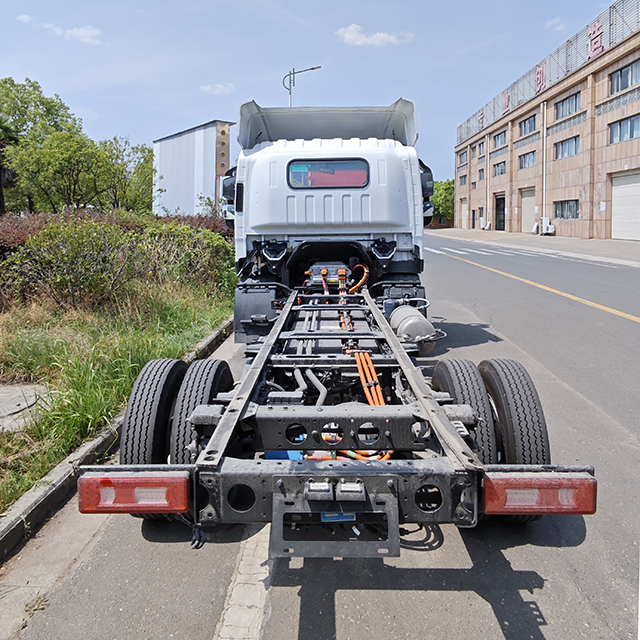

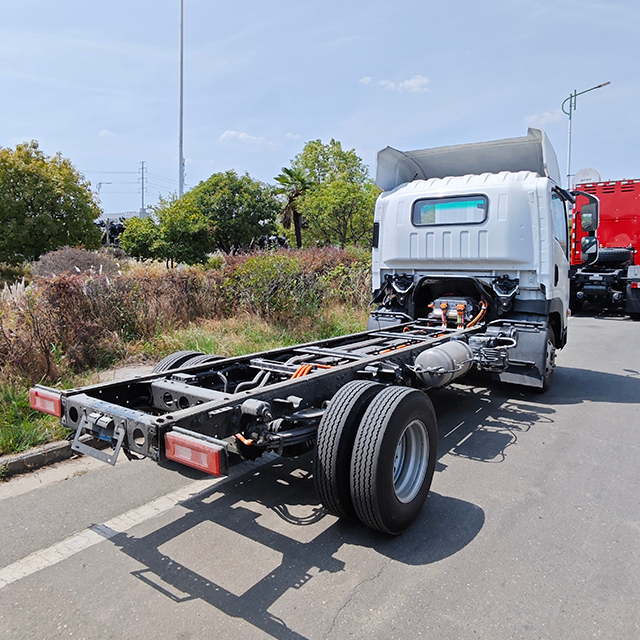

Carrying Capacity: It uses Dana's 2.2T maintenance-free front axle and 5T electric-drive rear axle. The chassis is 800mm wide on the outside, made of DL700 material, with a height of 165mm(locally reinforced). It is equipped with a leaf-spring suspension with fewer leaves, providing strong carrying capacity.
Safety Assurance: It features an electric power streering(EPS) system, dual-circuit air braking, disc brakes at the front and drum brakes at the rear. It also comes with an aluminum-alloy air-reservoir tank, KEMI ABS, EPB, and a 1.5kW oil-free piston air compressor from Rely, ensuring comprehensive driving safety.
Humanized Driving: Comfortable and Convenient, Intelligent and Safe
Driving Experience: The 2100-single-row cab with a deflector is spacious and comfortable. It is equipped with an air-conditioning system in the driving area, a PTC heating system, and an electric defroster to meet the needs of different seasons.
Intelligent Configuration: It features a multifunctional steering wheel, one-touch start-up, reversing imaging, reversing radar, and driver-behavior monitoring, enhancing the convenience of operation and driving safety.
Optional Functions: It can be optionally equipped with a mid-control screen, remote-control lock-car function, 24V power-take-off interface, and USB charging interface, and USB charging interface to meet diverse needs.
Application Scenarios
Urban Logistics Distribution
With low noise and zero emissions, it is suitable for running on urban streets. The cargo area measures 4200mmx2100mmx2100mm. meeting the needs of cargo loading
Port short-Hual Transportation
With strong power and a reliable chassis, it can adapt to the complex road conditions in ports. Its zero-emission characteristics reduce air pollution in ports.
Factory Internal Logistics

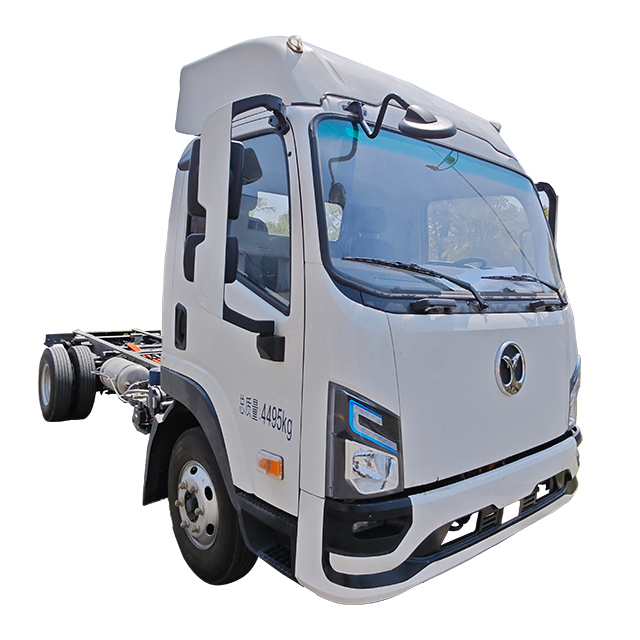

With a maximum total mass of 4495kg, it has a strong carrying capacity. The maintenance-free chassis and reliable suspension can withstand frequent use. The charging facilities are easy to build, improving operational efficiency.
