Product Description

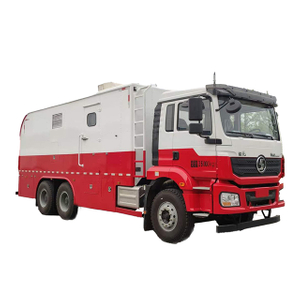

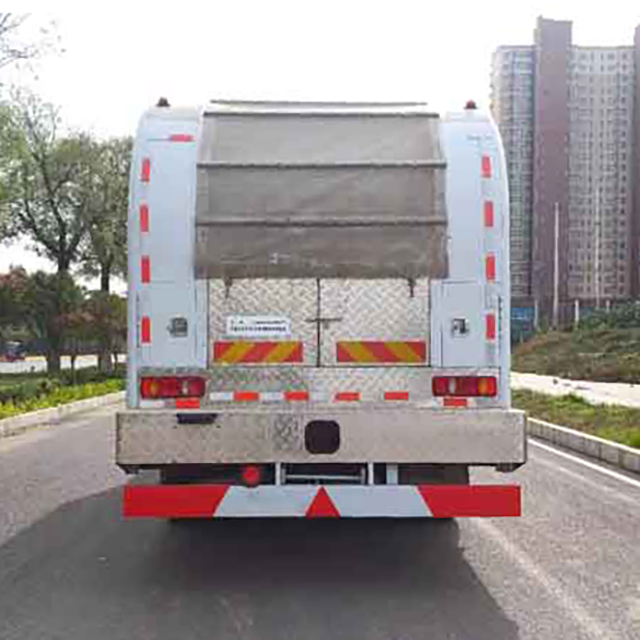

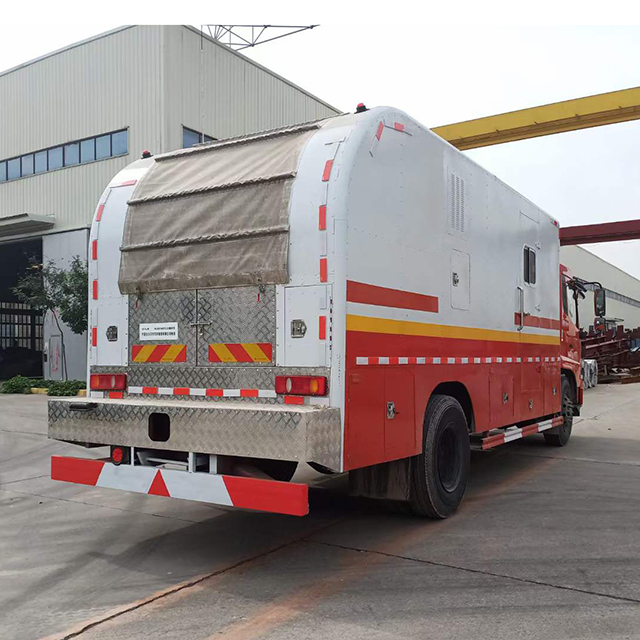

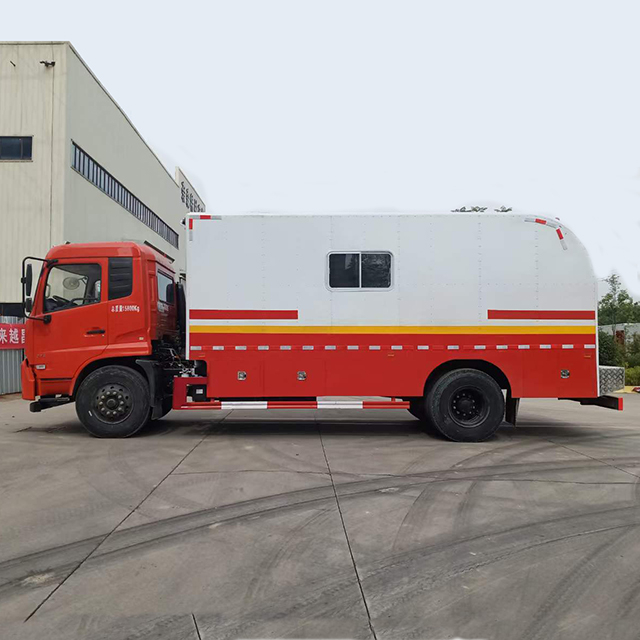

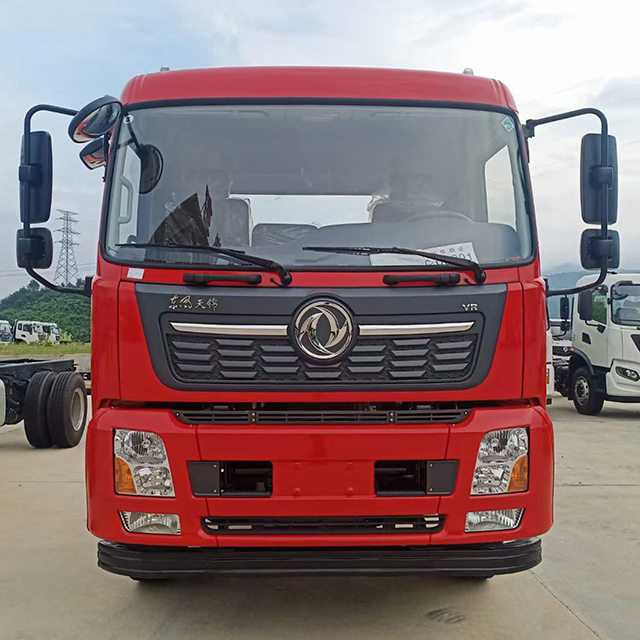

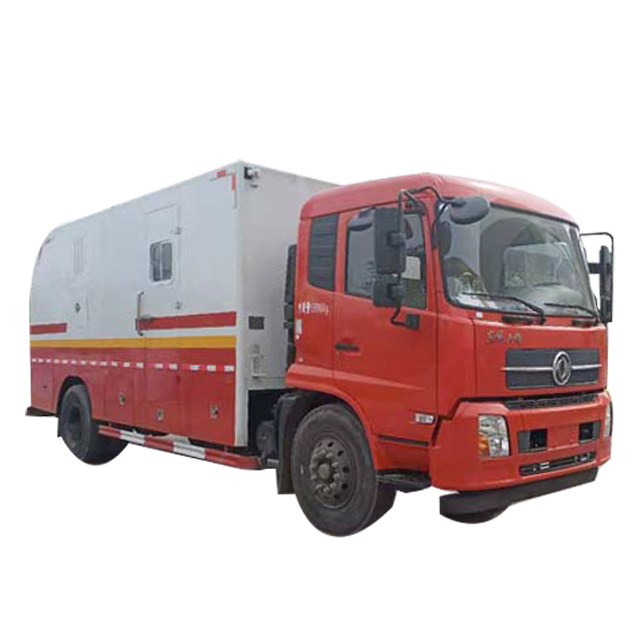

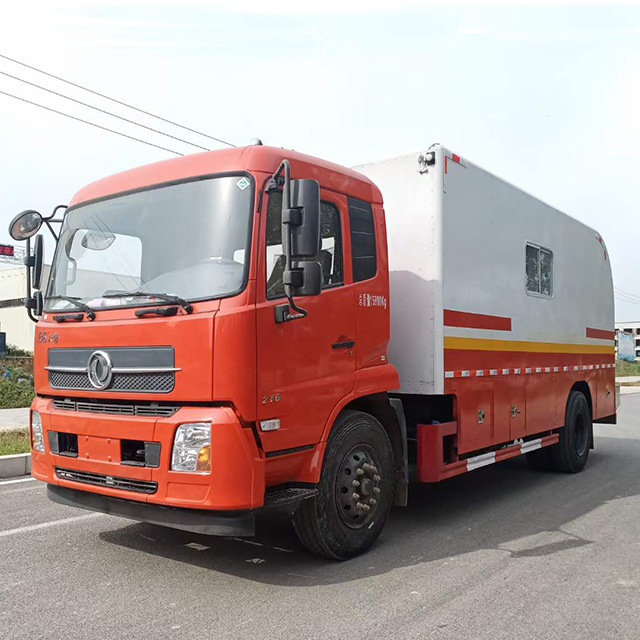

The Oil Well Logging Truck is an essential tool in the oil and gas industry, sprecifically designed for conducting well logging operations. This versatile vehicle is equipped with advanced technology to measure various geological and geophysical parameters within oil wells. It plays a crucial role in both exploration and production phases of oilfield operations.
Technical Specification
Overall Dimensions:8750x2550x3600(mm)
Gross Vehicle Wehight:15800(kg)
Curb Weight:15605(kg)
Maximum Speed:89Km/h
Wheelbase:3800,3950,4200,4500,4700,5000,5600(mm)
Tire Specifications:9.00R20 16PR, 10.00-20 16PR,275/80R22.5
Number of Tire:6
Approach/Departure Angle:20/10(°）
Engine Configuration
ISD210 50:Displacement 6700(ML),Power 155/210(Kw/Ps), Diesel
EQH180-53:Displacement 4752(ML), Power 132/179(Kw/Ps), Diesel
ISB190 50:Displacement 5900(Ml), Power 140/190(Kw/Ps), Diesel
Functions and Applications
Measurement of Geological Parameters
The logging truck is capable of measuring a variety pf physical, chemical, and electromagnetic information from the subsurface strata, such as formation resistivity, acoustic travel time, natrual gamma-ray intensity, borehole diameter, and borehole inclinaiton angle. These parameters are of great significance for understanding the structure, lithology, porosity, and permeability pf the underground rock layers, and they help to determine the presence of oil and gas in the strata, as well as the reserves and distribution of these hydrocarbons
Assessment of Oil Well Conditions
It can be used to measure parameters such as the downhole pressure, temperature, and fluid level of oil wells. Additionally, it can perform downhole operations like bottom-hole sampling, sand detection, and fishing, thereby assenssing the production capacity and health of the oil well and providing a basis for the development and management of the well
Assistance in Exploration and Development
During the petroleum exploration process, the logging truck provides important data for determining the location, size, and development plan of oil and gas reservoirs by measuring various geological parameters. In the oilfield development stage, it can be used to monitor the production dynamics of oil wells, optimize the exploitation plan, and increase the recovery rate
Advantages and Features
Efficiency:
The logging truck can quickly obtain a large amount of downhole data, reducing the time and cost of logging operations. For example, the new integrated logging truck can achieve a cable lowering speed of 20m/h under ultra-low speed conditions, which improves logging efficiency.
Accuracy
Equipped with high-precision measuring instruments and advanced control systems, it can accurately measure various downhole parameters, providing reliable data support for oil and gas exploration and development.
Flexibility
The logging truck has good mobility and can easily move between different well sites in the oilfield. At the same time, its structure and functions can be adjusted and optimized according to different logging requirements, adapting to various working environments and tasks.
Safety
Safety factors have been fully considered in the design and manufacturing of the logging truck. For example, the use of magnetic-resistant steel cast drums and dual-band air-controlled brake systems ensures the safety and reliability of logging operations.
