KEY SPECIFICATIONS
Vehicle Height:
The truck features a compact and efficient height ranging from 2080 to 2300 mm, with a body height of 1750 mm.
Engine:
Powered by the D25Pro engine (160ps), it offers robust performance tailored for heavy-duty tasks.
Transmission and Chassis: Equipped with a Shaanxi Gear 8JS85M high-speed gearbox and a wheelbase of 3360 mm, it ensures smooth operation. The chassis is reinforced with double-layer strengthening in key areas for increased durability.
Axles and Tires:
It includes a 2.5T front axle and an 8T rear axle, complemented by 7.00R16-8 tires, balancing maneuverability with load-bearing capacity.
Fuel Tank:
An 80L iron fuel tank ensures prolonged operations without frequent refueling.
Suspension:
The truck is equipped with a front spring of 8 pieces/9mm and a rear spring of 10+7 pieces/11mm+9mm, providing stability and support.
INNOVATIVE HOOK ARM SYSTEM

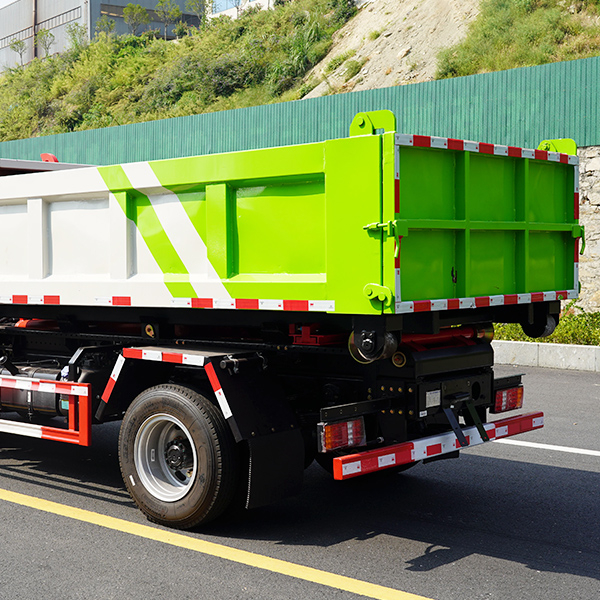

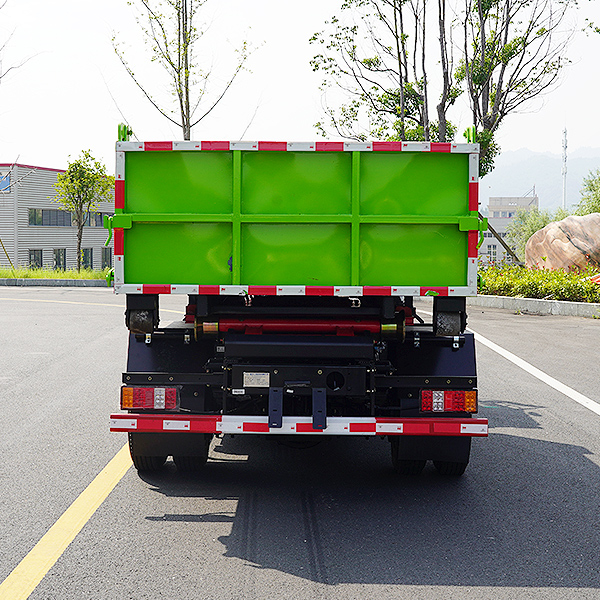

The hallmark of the Hubei TRI-RING Chuangke Hook Arm Garbage Truck is its advanced hook arm system. This system, enhanced with a reinforced telescopic arm, is designed for efficient and safe handling of detachable containers. It features a Hyva 160 lifting cylinder and hydraulic drum rear support legs, ensuring reliable lifting and transportation of waste containers.
OPERATION AND DURABILITY
Control System:
The truck offers both wired and wireless dual remote control options, providing flexibility and ease of use in various operational environments.
Construction:
The upper assembly of the truck is crafted with a shot-blasting and powder spraying process, ensuring durability that withstands the test of time, up to a decade.
Hydraulic Lock:
Equipped with a hydraulic lateral lock rebellion, it secures the container during transportation, enhancing safety and stability.
VERSATILITY AND ACCESSIBILITY
This model is designed to access a variety of urban landscapes, including underground basements, thanks to its compact dimensions and efficient design. Additional features like a factory-installed power take-off, two-point suspension, built-in air conditioning, electric windows, central locking, and a practical steering wheel augment its functionality.
OVERALL IMPACT
The Hubei TRI-RING Chuangke Hook Arm Garbage Truck embodies the essence of modern waste collection vehicles. With its compact design, powerful engine, and versatile hook arm mechanism, it is perfectly suited for urban environments where space is limited and efficiency is paramount. Its advanced features, including the sophisticated hook arm system and robust construction, make it a valuable asset in the pursuit of sustainable and effective urban waste management.
