CONFIGURATION
1. Overall Dimensions:
Length: 11480, Width: 2550, Height: 3960 (mm)
2. Cargo Compartment Dimensions:
Length, Width, Height
3. Maximum Speed:
89 (km/h)
4. Gross Vehicle Weight:
18000 (kg)
5. Curb Weight:
17870, 17805 (kg)
6. Seating Capacity (Driver Included):
2, 3
7. Track (Front/Rear):
Front Track: , Rear Track:
8. Approach/Departure Angle:
23/9 (°)
9. Reflective Marking Manufacturer:
Zhejiang Longyou Daoming Optics Co., Ltd., Minnesota Mining and Manufacturing Membrane Structure (Shanghai) Co., Ltd.
10. Reflective Marking Model:
DMCT1000, 983D
11. Reflective Marking Trademark:
DM, 3M
12. Anti-lock Braking System:
Yes
13. Front/Rear Suspension:
1440/3020 (mm)
14. Other:

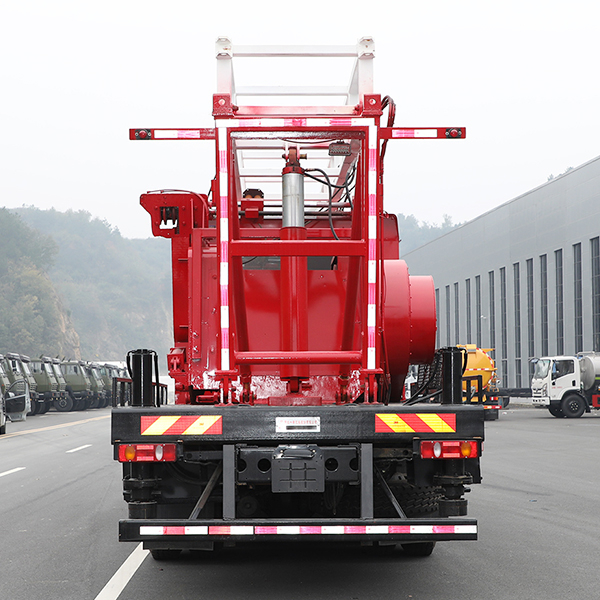

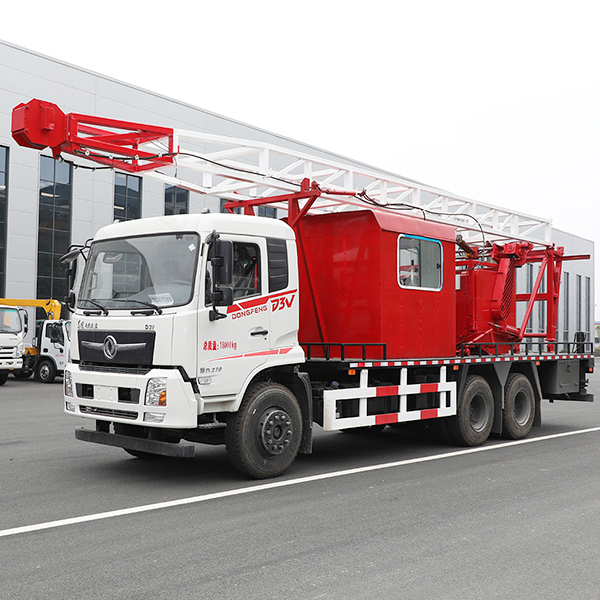

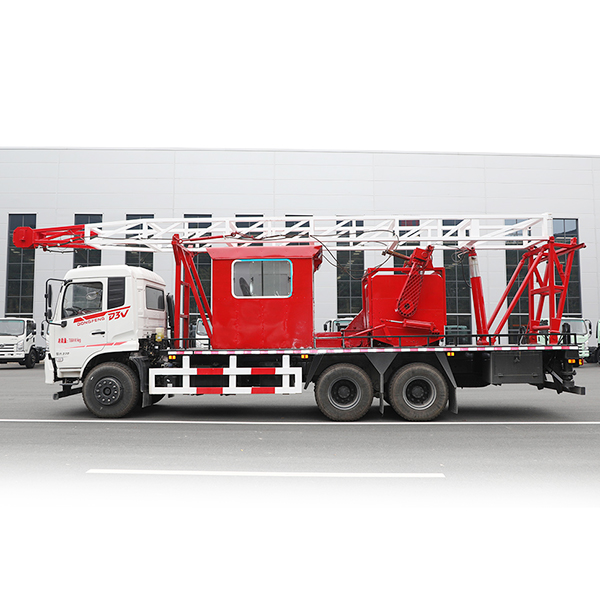

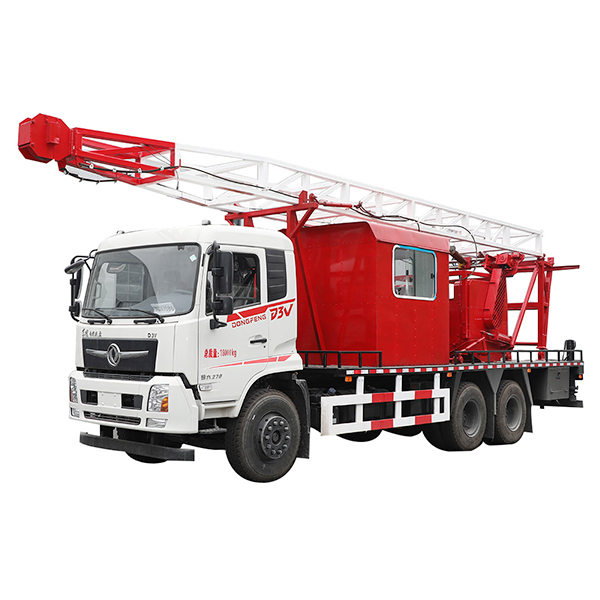

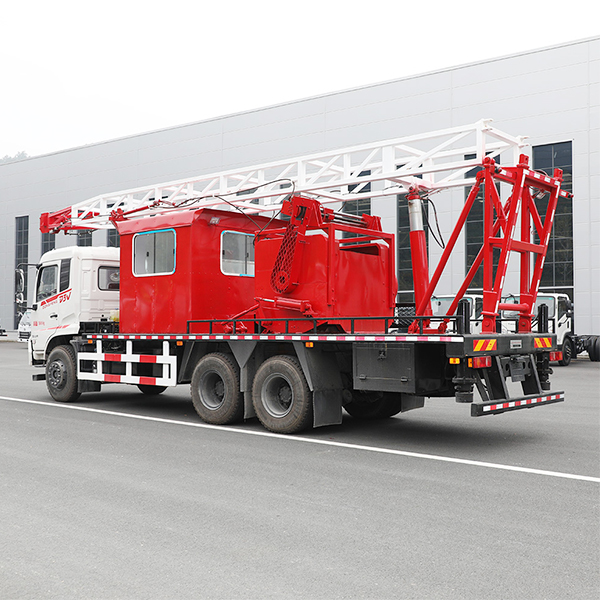

This vehicle is a specialized oilfield service vehicle equipped with a platform, derrick, winch, and other specialized equipment for oilfield operations. It is used for oil extraction operations in oilfields. The side protection is made of Q235 material, connected by bolts, and the rear protection is made of Q235 material, connected by bolt and welding. The section size is 140×70 (mm), and the height from the ground is 450 (mm). ABS Model/Manufacturer: 3631010-C2000/East Kornoel Commercial Vehicle Braking System (Shiyan) Co., Ltd. Optional ETC on-board device. Only select the wheelbase of 4350+1350mm. Corresponding dimensions of the vehicle length/front overhang/front suspension/wheelbase/rear suspension/rear overhang (mm): 11480/1100/1440/4350+1350/3020/220.
FUNCTION
The Oilfield Service Vehicle is specifically designed for oilfield operations, equipped with a platform, derrick, winch, and other specialized equipment. Its primary purpose is to support oil extraction activities in oilfields. The vehicle provides a reliable and efficient solution for various tasks related to oil production.
USAGE SCENARIOS
The Oilfield Service Vehicle is suitable for the following scenarios:
1. Oil Extraction Operations: The vehicle is used for supporting oil well drilling, completion, and maintenance activities in oilfields.
2. Equipment Transportation: It can transport specialized equipment, tools, and materials required for oilfield operations.
3. Platform Operations: The platform on the vehicle provides a stable working surface for oilfield personnel to perform tasks such as equipment installation, maintenance, and inspections.
4. Winch Operations: The vehicle's winch system enables the lifting and lowering of heavy equipment and materials during oilfield operations.
5. Support Services: It can provide support services such as power supply, lighting, and compressed air for oilfield operations.
The Oilfield Service Vehicle is designed to meet the demanding requirements of oilfield operations. With its specialized equipment, robust construction, and versatile functionality, it plays a crucial role in supporting efficient and safe oil extraction activities.
