ENGINE AND PERFORMANCE
Powered by a Yuchai engine, model YCS04200-68, it delivers a formidable 147 kW (200 horsepower), ensuring smooth and powerful operations. The optimized wheelbase of 3950mm, combined with a precise balance between size and maneuverability, allows this truck to navigate through diverse urban landscapes.
WEIGHT CAPACITIES
It strikes a balance between its maximum total weight of 18000kg and a range of rated load capacities (10880, 10815, 10350, 10285kg), offering ample space and power to handle significant volumes of waste. The kerb weight of 6990, 7520kg ensures stability and efficiency during transit.
OPERATION MODES
Featuring dual control modes, both electronic and manual, the truck offers versatility and ease of operation, catering to various urban waste collection scenarios.
CHASSIS CONFIGURATION
The Dongfeng D3 cabin, designed for the driver’s comfort and efficiency, adheres to Euro VI emission standards. The engine's strength is complemented by a Shaanxi Gear small eight-speed gearbox and 9.00R20 steel wire tires. The front and rear axles, 5T/10T, ensure durability and reliability, enhanced by features like a driving recorder, electric windows, and air conditioning.
UPPER EQUIPMENT CONFIGURATION

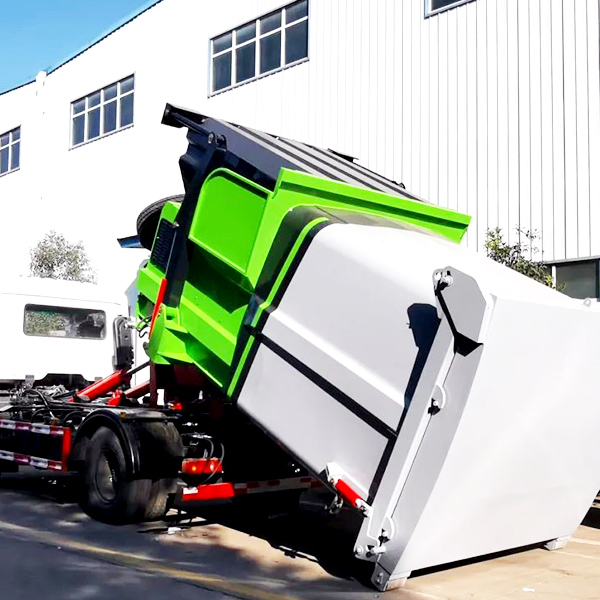

Crafted from high-strength carbon steel, the hook arm system with a telescopic arm and hydraulic support legs provides robustness and flexibility. The integration of hand and automatic operation modes adds to the truck's user-friendly nature.
ADVANCED UPPER INSTALLATION SYSTEM
1.Control System:
A mix of remote and manual operation, this system offers safety, proprietary technology, and industry-leading innovation.
2.Hydraulic System:
Custom-designed cylinders, pumps, and valves, made by renowned domestic factories, provide a high cost-performance ratio. Key components use imported seals for stable and reliable performance.
3.Safety Features:
These include a bidirectional unloading valve in the main oil cylinder, a balanced lifting system, dual-direction overload protection in the hydraulic system, and an explosion-proof lock device in the oil circuit for maximum safety.
4.Interlocking Protection:
The interconnected protective system prevents operational errors, thereby reducing hydraulic or mechanical failures and extending the vehicle's lifespan.
5.Arm Structure:
Made of high-strength steel with special treatment in critical areas for enhanced load-bearing and resistance to deformation.
6.Arm Assembly:
After thorough polishing, rust removal, and multi-process painting, the arm assembly not only meets aesthetic standards but also undergoes rigorous testing to ensure quality and durability.

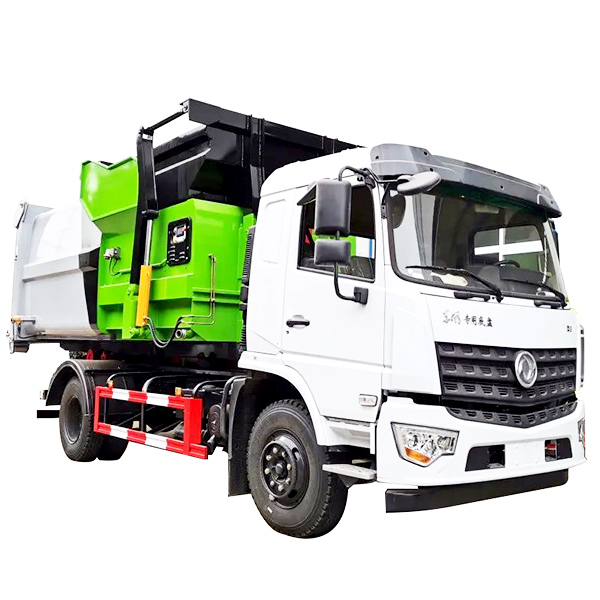

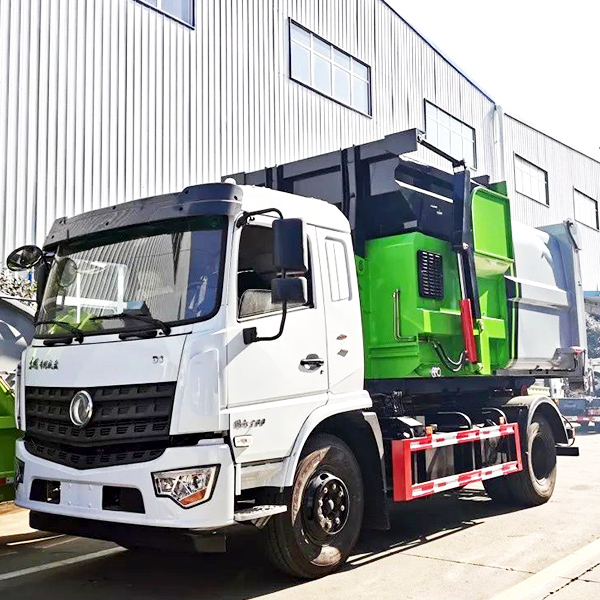

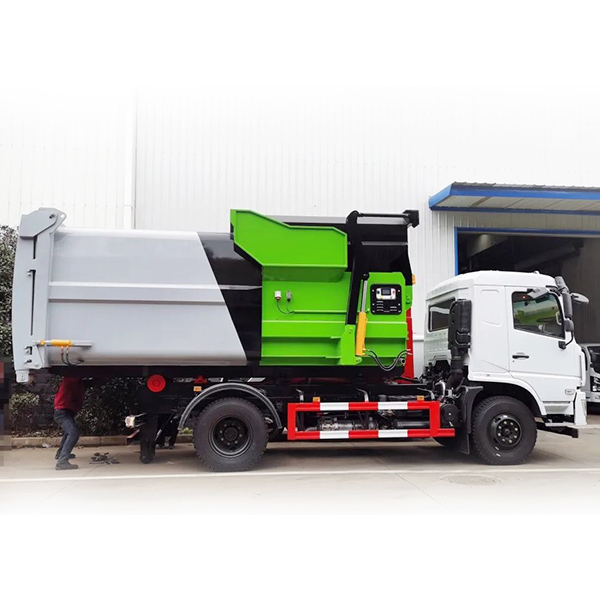

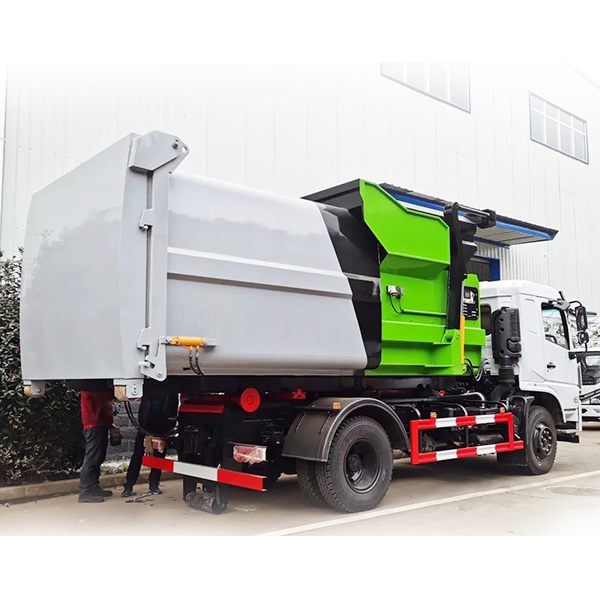

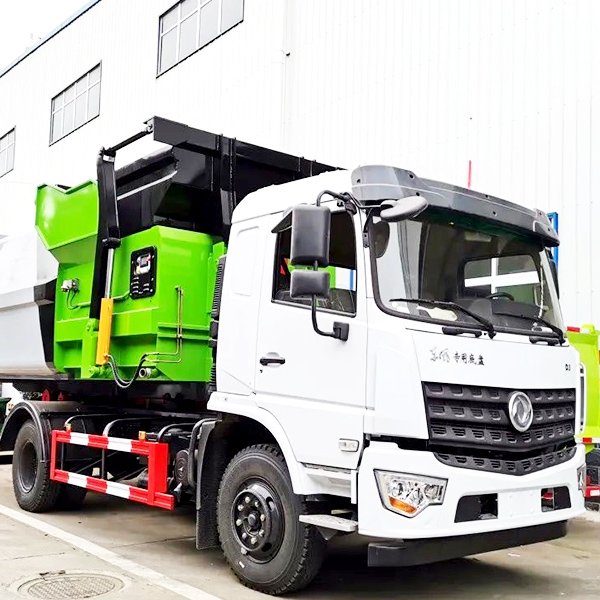

This Dongfeng Hook Arm Detachable Garbage Truck represents a harmonious blend of technology, efficiency, and ecological consideration, making it an essential asset for modern urban sanitation management.
