Operation of Kitchen Waste Collection Vehicle

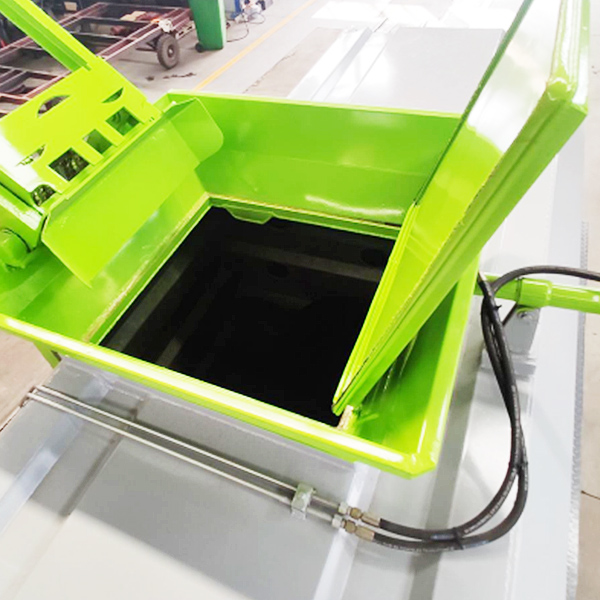

In terms of operation, the kitchen waste collection vehicle is designed for the utmost efficiency and hygiene. Waste, typically stored in buckets, is loaded onto a conveyor system and then poured into the vehicle’s compartment, which includes a body and a tank. A powerful compression mechanism reduces the volume of the waste, separating solids and liquids. The liquid waste is directed into a dedicated sewage tank, while the solid waste is compacted and stored, optimizing space utilization. This process is entirely automated, ensuring a high level of operational efficiency.
The collection and centralized processing of kitchen waste demand vehicles that are not only efficient in segregation and storage but also harmonious with subsequent resource recovery systems. Given the high moisture content and complex nature of kitchen waste, these vehicles are engineered for excellent sealing, ensuring safe and odor-free operations. They are designed for ease of use, with high-efficiency loading and unloading capabilities, and are perfectly aligned with the requirements of advanced waste treatment and resource recovery technologies. This specialized vehicle is an essential component in the modern, sustainable management of kitchen waste, contributing significantly to urban environmental protection and resource optimization.
Operation of Kitchen Waste Collection Vehicle
In terms of operation, the kitchen waste collection vehicle is designed for the utmost efficiency and hygiene. Waste, typically stored in buckets, is loaded onto a conveyor system and then poured into the vehicle’s compartment, which includes a body and a tank. A powerful compression mechanism reduces the volume of the waste, separating solids and liquids. The liquid waste is directed into a dedicated sewage tank, while the solid waste is compacted and stored, optimizing space utilization. This process is entirely automated, ensuring a high level of operational efficiency.
The collection and centralized processing of kitchen waste demand vehicles that are not only efficient in segregation and storage but also harmonious with subsequent resource recovery systems. Given the high moisture content and complex nature of kitchen waste, these vehicles are engineered for excellent sealing, ensuring safe and odor-free operations. They are designed for ease of use, with high-efficiency loading and unloading capabilities, and are perfectly aligned with the requirements of advanced waste treatment and resource recovery technologies. This specialized vehicle is an essential component in the modern, sustainable management of kitchen waste, contributing significantly to urban environmental protection and resource optimization.
CONFIGURATION
Project | Details |
Overall dimensions | 5590*2250*2300 |
Gross Vehicle Weight | 18000(Kg) |
Curb weight(kg) | 3680KG |
Approach / departure angle | |
Wheelbase | 3360 |
Maximum speed | 89(km/h) |
Number of tires | 4 |
Front track | 1721 |
Volume | 6.5m³ |
Engine model | YCY24140-60 |
Displacement (ML) | |
Rated load capacity | |
ABS | standard configuration |
Front / rear suspension | |
Front and rear Axle Load | 2.2T / 5T |
Number of axles | 2 |
Number of spring pieces | 3 / 3+2 |
Tire Size | 7.00R16 |
Rear track | 1800 |
Transmission | Wanliyang 6 speed gearbox |
(KW) / horsepower (PS) | 140PS |
Fuel |
CONFIGURATION
Project | Details |
Overall dimensions | 5590*2250*2300 |
Gross Vehicle Weight | 18000(Kg) |
Curb weight(kg) | 3680KG |
Approach / departure angle | |
Wheelbase | 3360 |
Maximum speed | 89(km/h) |
Number of tires | 4 |
Front track | 1721 |
Volume | 6.5m³ |
Engine model | YCY24140-60 |
Displacement (ML) | |
Rated load capacity | |
ABS | standard configuration |
Front / rear suspension | |
Front and rear Axle Load | 2.2T / 5T |
Number of axles | 2 |
Number of spring pieces | 3 / 3+2 |
Tire Size | 7.00R16 |
Rear track | 1800 |
Transmission | Wanliyang 6 speed gearbox |
(KW) / horsepower (PS) | 140PS |
Fuel |
OTHER
Other configuration: fixed cab suspension, twisted rod type flip, electric glass elevator, remote control key + central lock (four lock), LCD instrument, MP3 + radio, air conditioning, sandwich glass, ordinary air filter, air brake, 100 AH maintenance-free battery, 12V electrical system, ABS, automatic adjustment arm, T-BOX, manual adjustment electric heating rearview mirror, aluminum alloy storage cylinder, cruise control, PU multifunctional steering wheel, ordinary steel ring. |
OTHER
Other configuration: fixed cab suspension, twisted rod type flip, electric glass elevator, remote control key + central lock (four lock), LCD instrument, MP3 + radio, air conditioning, sandwich glass, ordinary air filter, air brake, 100 AH maintenance-free battery, 12V electrical system, ABS, automatic adjustment arm, T-BOX, manual adjustment electric heating rearview mirror, aluminum alloy storage cylinder, cruise control, PU multifunctional steering wheel, ordinary steel ring. |
