KEY FEATURES AND TECHNICAL SPECIFICATIONS
1.Effective Volume of the Container:
6m³, designed with a curved shape, enhancing both aesthetics and functionality.
2.Container Material:
Made of 4mm thick T420 special steel on the sides and bottom, providing durability and resistance to wear and tear.
3.Compression Ratio:
≥2.5, ensuring efficient waste reduction.
4.Filler Volume:
≥0.8m³, with a cycle time of ≤25s for loading and ≤45s for unloading waste.
5.Control System:
Offers both automatic and manual control modes.
6.Hydraulic System:
Features a maximum pressure of 18MPa, with components like multi-way valves from Yangzhou Zhongmei and hydraulic pumps from Hefei Changyuan.
7.Cylinders and Tubes:
Utilizes high-quality hydraulic cylinders from Hunan Juge/Yantai Future and Tianhe oil tubes.
8.Electromagnetic Air Valve:
Bairin Pneumatics, enhancing the efficiency and precision of operations.
9.Control System:
Employs CAN-BUS bus control for seamless integration and operation.
10.Lifting Cylinder Balance Valve:
Imported from Italy, ensuring smooth and safe lifting operations.
11.Engine Power Control:
Fully automated for optimal power output during waste compaction and ejection cycles.

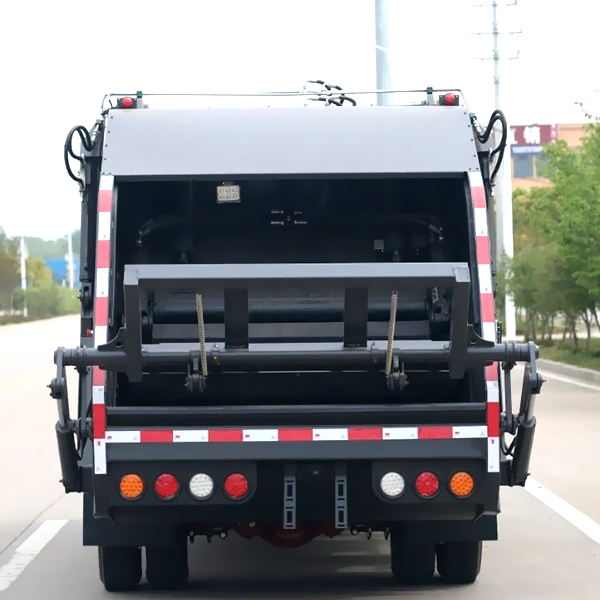

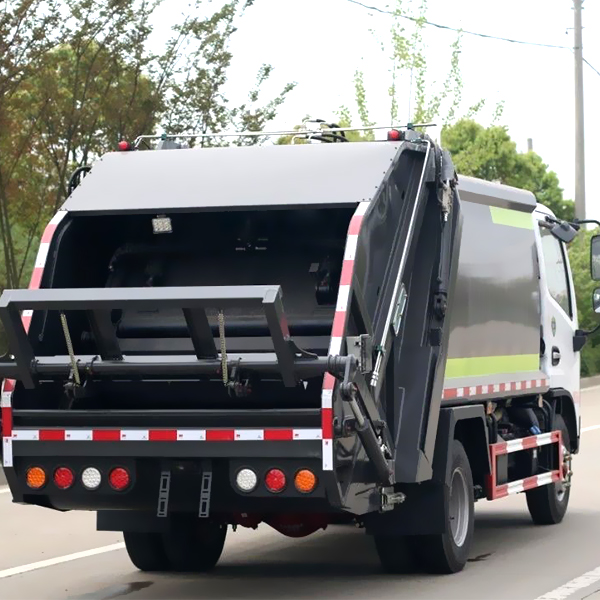

12.Tipping Mechanism:
Standard equipment includes two 240L tipping mechanisms, with options for various working devices.
PERFORMANCE AND FEATURES
1. Electro-Hydraulic Combined Control:
The control system merges the benefits of electrical and hydraulic controls, enhancing reliability and efficiency.
2. Automatic Engine Power Output Control:
Adjusts the throttle automatically for power needs during waste compaction, minimizing power loss, reducing malfunction rates, and enhancing fuel economy.
3. Robust Frame Structure:
The garbage box is a solid frame structure made of reinforced beams and steel plates, with a rounded surface for an attractive appearance, lightweight, and effective force distribution.
4. Sealed Design to Eliminate Secondary Pollution:
The garbage is completely enclosed during compaction and transport. Special rubber seals and lock devices ensure a tight seal, and a unique sewage valve prevents leakage.
5. Safety Features in Hydraulic Lifting:
The system includes bidirectional balance valves for safe and steady descent of the filler, even in the event of hose rupture.
6. Advanced Electronic Control System:
Utilizing CAN bus controllers for sequence and interlock of operations, reducing malfunctions and ensuring safety.
7. Efficient Locking and Sliding Mechanism:
The filler combines effectively with the body using a locking mechanism, and the sliding plate is guided by nylon blocks.
8. Dual Operation Modes:
Both automatic and manual operation modes are available, ensuring continuous operation even in case of faults.
9. Convenient Operation Control:
Control boxes are located in the cabin and at the rear, allowing easy control over waste compaction and tipping.
10. High-Quality Components:
Key electrical and hydraulic components are sourced from reputable suppliers, ensuring reliability.

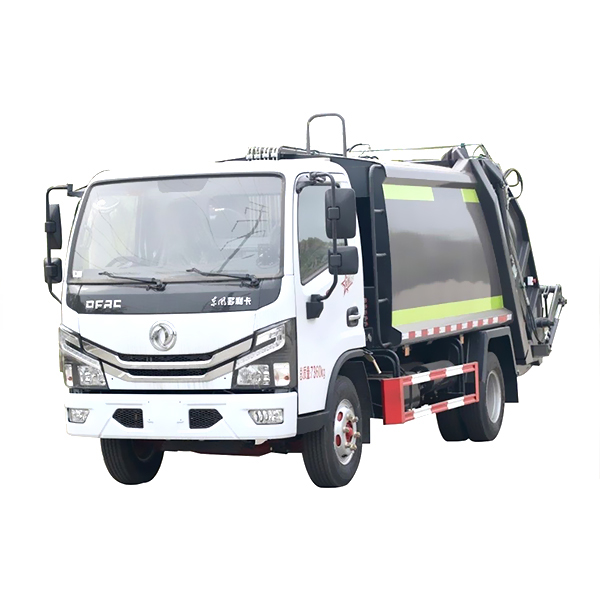

The Dongfeng Dolika Compressed Garbage Truck is a testament to modern waste management technology, combining efficient waste handling, advanced control systems, and an environmentally friendly design. It stands out for its operational efficiency, safety features, and a design that prioritizes user convenience and environmental protection.
