KEY HIGHLIGHTS
1. Structural Design:

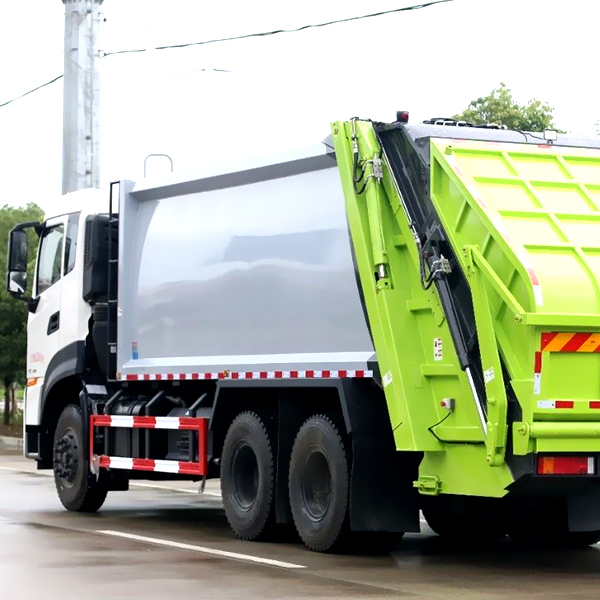

Container Structure:The garbage box, made with reinforced beams and high-strength steel plates, forms a robust frame. Its sides are cold-bent for rigidity, and the curved top surface and bottom plates are joined using advanced welding techniques to prevent leakage. A large-capacity sewage collection box is located at the front lower part, enhancing the truck's sewage storage capacity. Overall, the design is aesthetically pleasing, lightweight, and durable.
Push Shovel Assembly: Features an adjustable sealing strip to ensure a gap between the shovel and the container, ensuring even waste distribution and thorough unloading.

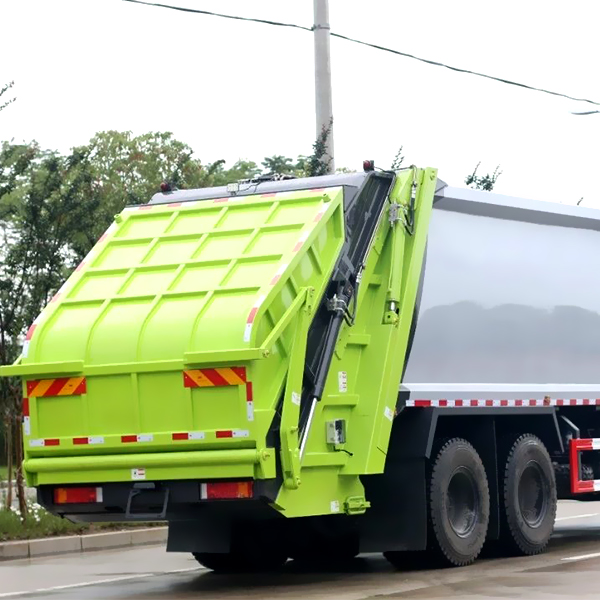

Filler Assembly: Comprises components like the filler shell, slide plate, and scraper, all made from high-strength, wear-resistant materials. The arc-shaped plate has drainage holes to channel waste water to the sewage storage box below, preventing spillage during transportation.
Tipping Mechanism: Constructed with bending materials and profiles, offering a solid and aesthetically pleasing design.
Cylinder Supports and Other Components: The force-bearing parts like the garbage bin lifting hooks and guide plates are made from cast steel, ensuring structural integrity and durability.
2. Hydraulic Transmission System:
Uses renowned domestic brands for hydraulic cylinders, like Xiamen Yinhua and Yantai Future, ensuring a long service life with British-imported HALLITE seals.
The hydraulic oil pump is made of aluminum alloy gear pumps by Hefei Changyuan/Hefei Wanyi, known for their stability and reliability.
The multi-way valve features an Italian core for consistent performance.
Hydraulic pipes and hoses are from well-known domestic brands, ensuring quality and durability.
3. Electrical Control System:
Designed modularly, the system consists of a control box assembly, front operation CAN bus keyboard, rear operation button box group, proximity switch sensor, and vehicle wiring harness. Components are interconnected through aviation-grade and waterproof connectors. The system boasts high integration, simplicity, and easy installation, with a high protection level of IP67 and a wide operating voltage range of 9~36VDC.
4. Operational Device:
Different bin (bucket) mechanisms are available for various garbage collection methods, accommodating standard metal bins, plastic bins, and large-capacity sealed cover bins.
TECHNICAL SPECIFICATIONS
1. Container Volume:
≥18.5m³ with an arc-shaped body.
2. Container Material:
Bottom 5mm, sides 4mm (special steel).
3. Compression Ratio:
≥2.5.
4. Filler Volume:
≥1.9m³.
5. Loading Cycle Time:
≤25s.
6. Unloading Time:
≤45s.
7. Control Modes:
Automatic and manual.
8. Hydraulic System Pressure:
18MPa.
9. Multi-way Directional Valve:
Special imported core.
10. Hydraulic Oil Pump:
Hefei Changyuan/Wanyi.
11. Hydraulic Cylinder:
Hunan Juge/Yantai Future.
12. Control System:
CAN bus integrated control.
13. Tubing:
Guangdong Tianhe hoses, Xuzhou steel pipes.
14. Other Features:
Integrated slide block.

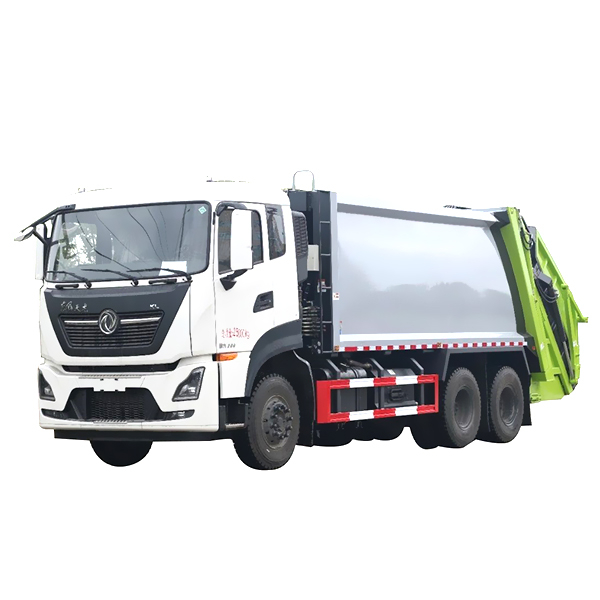

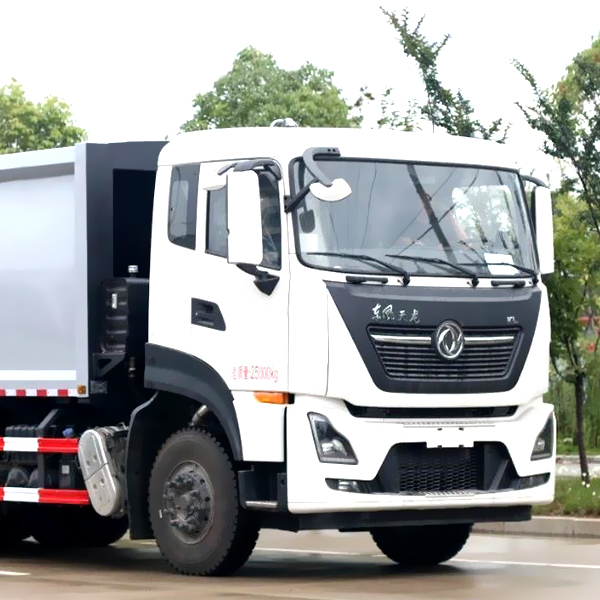

CHASSIS CONFIGURATION OF DONGFENG TIANLONG NATIONAL VI COMPRESSED GARBAGE TRUCK

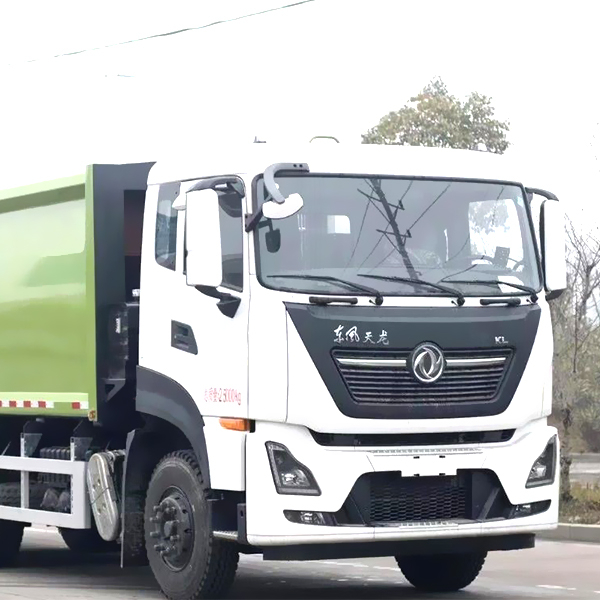

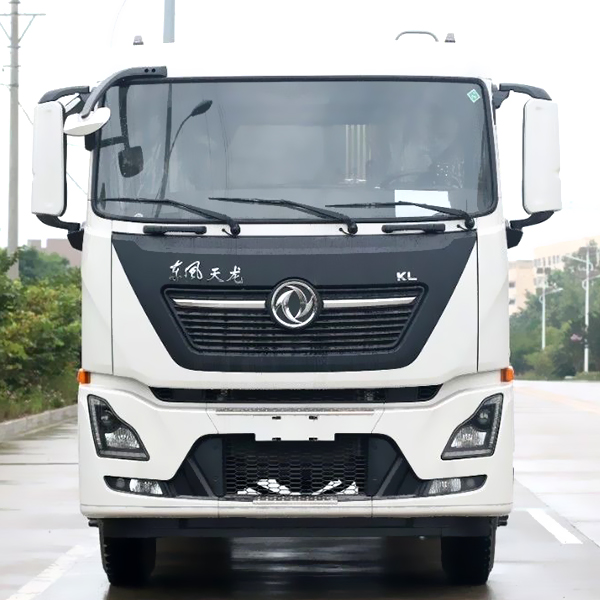

Uses the National VI KL Dongfeng Tianlong luxury D320 jade white flat-top standard cab, model DFH1250D4, with a wheelbase of 4350mm+1350mm.
Powered by Dongfeng Cummins D6.7NS6B290 horsepower or Renault 350 horsepower engine.
Features a Fast 9-speed (9JS119) gearbox, a 5.5T front axle, dual 10-ton rear axles, 295/80R22.5 18PR vacuum tires, factory-installed air conditioning, ABS, central control - remote control front door locks, airbag suspension driver seat, and standard equipment including cruise control, Beidou navigation, lower protection.
This Dongfeng Tianlong National VI Compressed Garbage Truck is a testament to the fusion of aesthetics and operational efficiency, making it a standout choice in modern waste
