KEY HIGHLIGHTS
1. Environmental Protection:
Ship-Shaped Bottom Design: Enhances water storage capacity and solves the problem of wastewater leakage.
Dynamic Compaction Gap Control: Maintains a constant gap between the compaction mechanism and the garbage box, preventing littering.
Adjustable Rear Door: Features a sealing rubber strip for leak-proof closure.
Covered Compression Mechanism: Ensures enclosed transport and eliminates spillage.
Efficient Wastewater Collection and Storage: Boasts a strong capacity to manage and store wastewater.
2. Economic and Cost-Efficient:
Lightweight Design: Achieved through three-dimensional design methods and high-strength materials, omitting the conventional filler.
High Loading Capacity: Lowers transportation costs.
Fuel Efficiency: The engine operates at an economical speed during loading, reducing fuel consumption.
3. User-Friendly and Safe Design:
Cylinder-Driven Bin Pressing Technology: Ensures safe and reliable tipping and loading, minimizing the risk of dropping bins.
High-Quality Hydraulic Valves: Reduce hydraulic shock and lower operational noise.
Advanced Electronic Control System: Ergonomically designed for user-friendliness and market adaptability.
High-Strength, Wear-Resistant Steel: Used in areas in direct contact with garbage, offering high yield strength and corrosion resistance.
Optimized Clearance Angle: Ensures smooth navigation through narrow streets and challenging environments like old urban areas and landfill sites.
Logical Interlock Control: For the push shovel, compaction mechanism, and rear door, ensuring safety and reliability.
TECHNICAL SPECIFICATIONS
1. Container Volume:
≥13.7m³ with a square shape.
2. Container Material:
Bottom 5mm, sides 4mm.
3. Control Mode:
CAN bus system.
4. Wastewater Tank Volume:
400L.
5. Loading Cycle Time:
≤20s.
6. Unloading Cycle Time:
≤45s.
7. Bin Lifting Cycle Time:
≤15s.
8. Unloading Method:
Push shovel.
9. Loading Method:
Rear tipping.
10. Bin Lifting Mechanism:
Compatible with 240L/660L standard plastic bins.

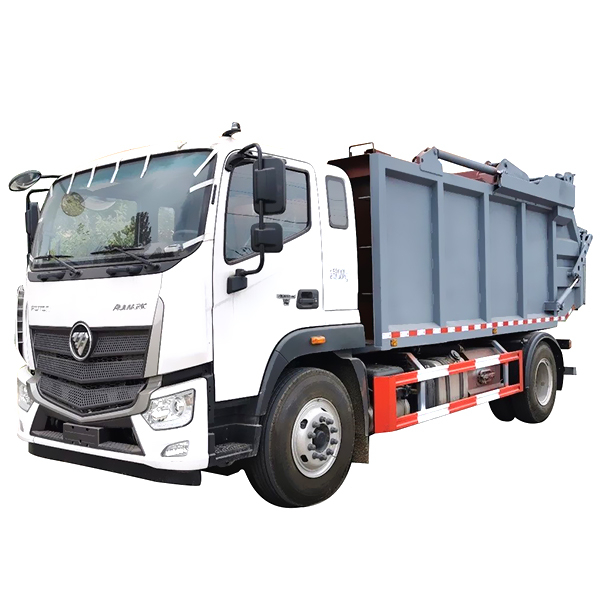

This Foton Ollin National VI Leak-Free Compressed Garbage Truck is a testament to innovative design and environmental responsibility, making it a highly efficient and safe choice for urban and rural waste collection and transportation.
