UPPER ASSEMBLY TECHNICAL SPECIFICATIONS
1. Container Volume:
Ranging from 6m³ to 9m³.
2. Container Shape:
Arc-shaped for aesthetic appeal and structural integrity.
3. Container Material:
4mm thick on sides and bottom.
4. Container Steel Type:
T420 special steel for durability and strength.
5. Compression Ratio:
≥2.5, ensuring efficient waste compaction.
6. Hopper (Filler) Volume:
≥0.8m³ for effective loading.
7. Loading Cycle Time:
≤25 seconds for rapid waste processing.
8. Unloading Time:
≤45 seconds for efficient waste disposal.
9. Control Mode:
Both automatic and manual options for versatile operation.
10. Hydraulic System Maximum Pressure:
18MPa for powerful compaction.
11. Multi-Way Directional Valve:
Yangzhou Zhongmei brand for reliable performance.
12. Hydraulic Oil Pump:
Hefei Changyuan, known for stability and durability.
13. Hydraulic Cylinders:
Hunan Juge/Yantai Future for robust operation.
14. Tubing:
Tianhe, ensuring quality and longevity.
15. Electromagnetic Valve:
Bailing Pneumatics for precise control.
16. Control System:
CAN-BUS bus control for advanced system integration.
17. Lifting Cylinder Balance Valve:
Imported from Italy for smooth operation.
18. Engine Power Control:
Fully automatic control for optimized performance.
19. Flip Mechanism:
Standard with 2 units for 240L bins and optional with various work devices.
KEY FEATURES AND PERFORMANCE
1. Electro-Hydraulic Combined Control:
The control system efficiently integrates electrical and hydraulic controls, enhancing reliability and efficiency through hydraulic valve group management.
2. Automatic Engine Power Output Control:
Engine power, including throttle control, is fully automated through the electrical system. This optimization is crucial during compaction and pushing unloading cycles, minimizing power loss, reducing the likelihood of malfunctions, lowering fuel consumption, and enhancing economic efficiency.
3. Robust Frame Structure:

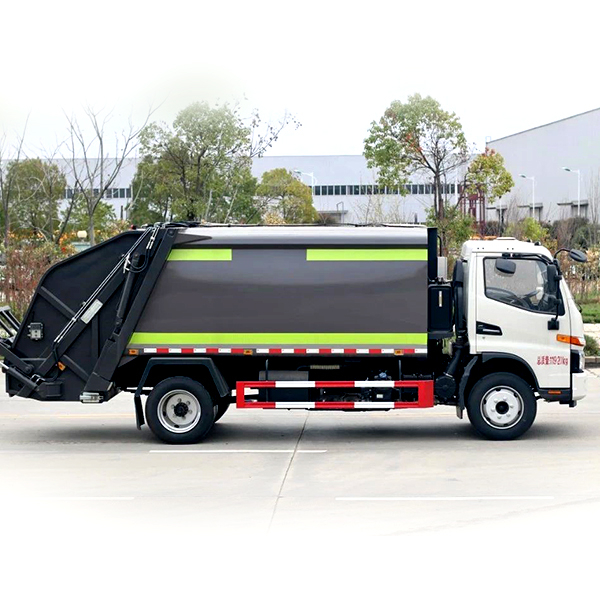

The garbage box features a strong frame structure made of reinforced beams and steel plates. The sides and top are arc-shaped for an appealing appearance, lightweight construction, and excellent load-bearing capacity without deformation.
The push shovel consists of a rectangular tube framework and folded panels, not only making the structure lighter but also ensuring even distribution of garbage and thorough unloading.

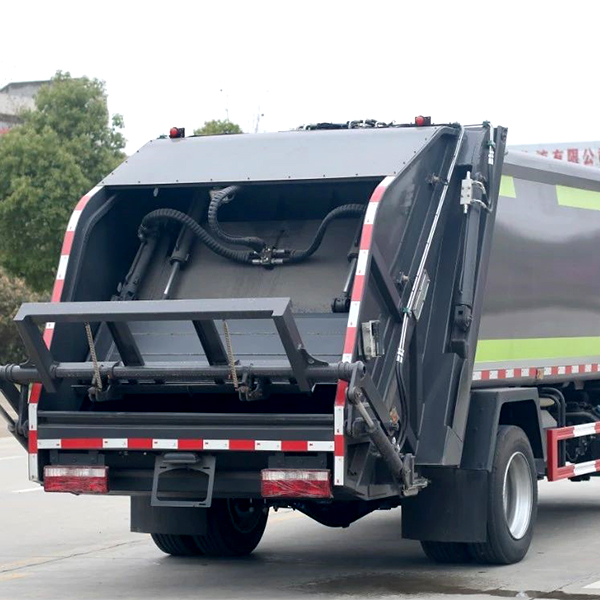

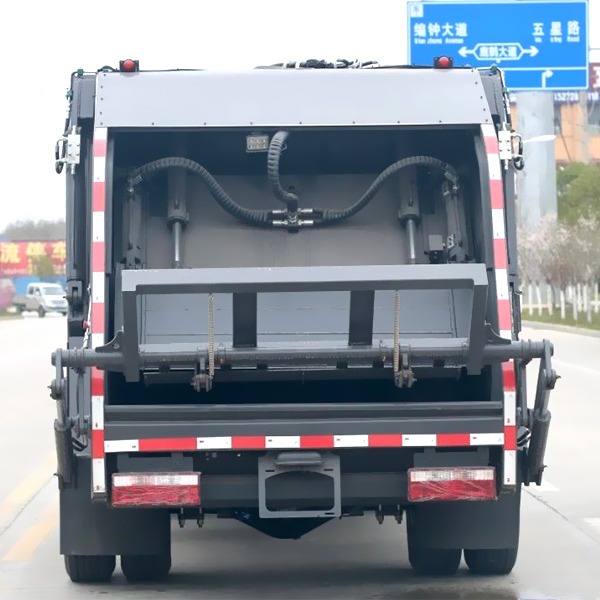

The filler is composed of a shell, slide plate, and scraper, all crafted from structurally sound beams or box-type constructions, ensuring a solid and lightweight design.

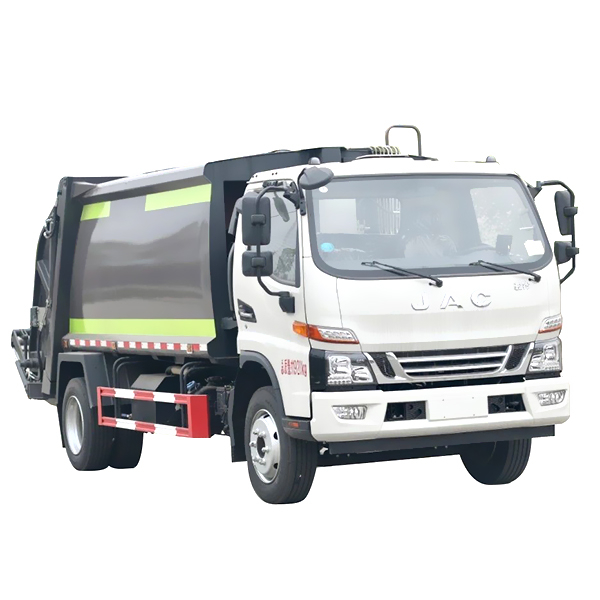

This Jianghuai Juntong 9 Cubic Meter Compressed Garbage Truck exemplifies technological innovation in waste management, offering a blend of aesthetic design, robust functionality, and user-friendly features, making it a top choice for modern sanitation needs.
