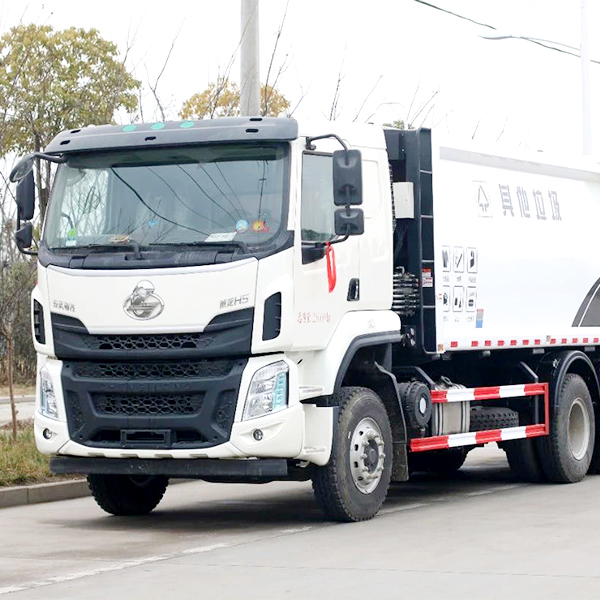

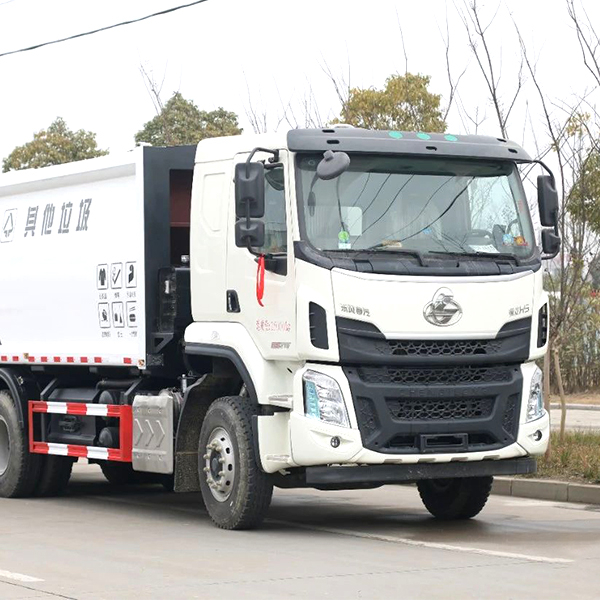

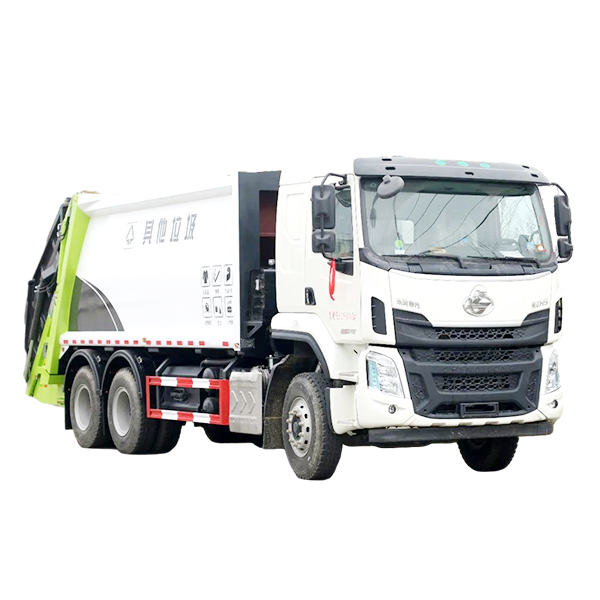

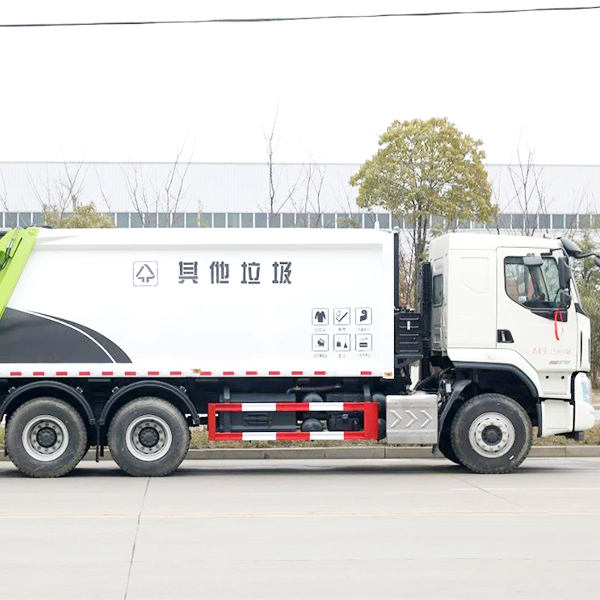

PRODUCT STRUCTURE INTRODUCTION
1. Container Structure:
The garbage container has a robust frame structure made from reinforced beams and high-strength steel plates. The sides are cold-bent, with large R-angle forming for increased rigidity. The curved top surface and advanced welding techniques of the bottom and side plates prevent leakage. A large wastewater collection tank at the front lower part enhances the truck’s wastewater storage capacity. The overall design is aesthetically pleasing, lightweight, and resistant to deformation.
2. Push Shovel Assembly:
Constructed from a rectangular steel tube frame and bending plates, it features adjustable sealing strips around the edges to ensure a gap-free fit with the container. This design not only distributes the garbage evenly but also ensures thorough and clean unloading.
3. Filler Assembly:
Comprising the filler shell, slide plate, and scraper, the filler's slide path is made from high-strength, wear-resistant material. The lower curved plate has drainage holes for wastewater to flow into the storage tank below, preventing spillage during transport. The large wastewater tank below the filler has large-diameter drainage outlets. Slide plates on either side are made from integral nylon blocks for self-lubrication, high stability, and better wear resistance. The scraper is reinforced at stress points for durability and lightweight.
4. Flip Mechanism:
Made from bending materials and profiles, the structure is sturdy and aesthetically pleasing.
5. Oil Cylinder Supports:
Garbage bin lifting parts, bin guiding plates, linkage supports, and other stress-bearing parts are cast from steel, ensuring solid construction and resistance to breakage.
HYDRAULIC TRANSMISSION SYSTEM
1. Hydraulic Cylinders:
From renowned domestic brands like Xiamen Yinhua/Yantai Future, all seals are from the British HALLITE brand for extended life.
2. Hydraulic Pumps:
Made by Hefei Changyuan/Hefei Wanliquid, these aluminum alloy gear pumps are stable and reliable.
3. Multiway Valves:
Utilize Italian core multiway valves for stable performance.
4. Hydraulic Pipelines:
From well-known domestic brands, with steel pipes by Xuzhou Global Communication and hoses by Guangzhou Tianhe.
ELECTRICAL CONTROL SYSTEM

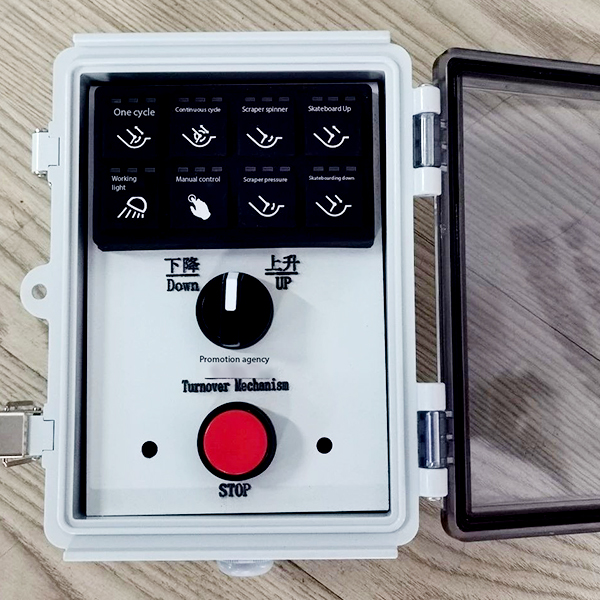

The system, built on a modular design, includes a control box assembly, front operation CAN bus button panel, rear operation button box assembly, proximity switch sensors, and vehicle body wiring harness. Connections are made through aviation plugs and automotive-grade waterproof connectors. The system is highly integrated, simple, and easy to install, with an IP67 protection rating and a wide 9~36VDC operating voltage range. The buttons have a lifespan of over 1 million presses and are widely used in construction and sanitation machinery for their high reliability, stable performance, and backlighting for night work.
WORKING DEVICE
Customers can choose from different bin (bucket) mechanisms to suit their garbage collection needs: standard metal garbage bins ZBT59003-88 (300L), plastic garbage bins (240L, 660L), small on-board garbage buckets (800L), sealed cover garbage buckets (1400L), and swing arm garbage buckets (3000L).
TECHNICAL SPECIFICATIONS
1. Container Effective Volume:
≥18.5m³
2. Container Shape:
Curved container
3. Container Material:
Special steel, bottom 5mm, sides 4mm
4. Compression Ratio:
≥2.5
5. Filler Effective Volume:
≥1.9m³
6. Filling Cycle Time:
≤25s
7. Garbage Discharge Time:
≤45s
8. Control Mode:
Automatic, manual
9. Hydraulic System Pressure:
18MPa
10. Multiway Valve:
Special multiway valve with imported valve core
11. Hydraulic Pump:
Hefei Changyuan/Wanliquid
12. Hydraulic Cylinder:
Hunan Juge/Yantai Future
13. Control System:
CAN bus integrated control
14. Oil Tube:
Guangdong
